Easy Installation SS316L Polishing Johnson Continuous Slot Wedge Wire Water Filter Nozzle With M24 Male Threaded
Continuous Slot Wedge Wire Screen Nozzle also be named: Johnson screen nozzle, Johnson strainer nozzle, Johnson filter nozzle, wedge wire strainer nozzle, stainless steel filter nozzle, double flow screen nozzle, double head filter nozzle, v wire screen nozzle, water filter nozzles, water & gas strainer nozzle.
Product Quick Details:
1. Name: Johnson continuous slot wedge wire water screen nozzle
2. Diameter: 57mm
3. Material: SS316L
4. Slot: 0.15-0.2mm
5. Flow rate: 2Ton
6. Screen Length: 55mm
7. OL: 120mm
8. Threaded:M24, or M32
9. Weight: 0.22-0.25kg
10.Withnut, stainless steel washer, rubber washer

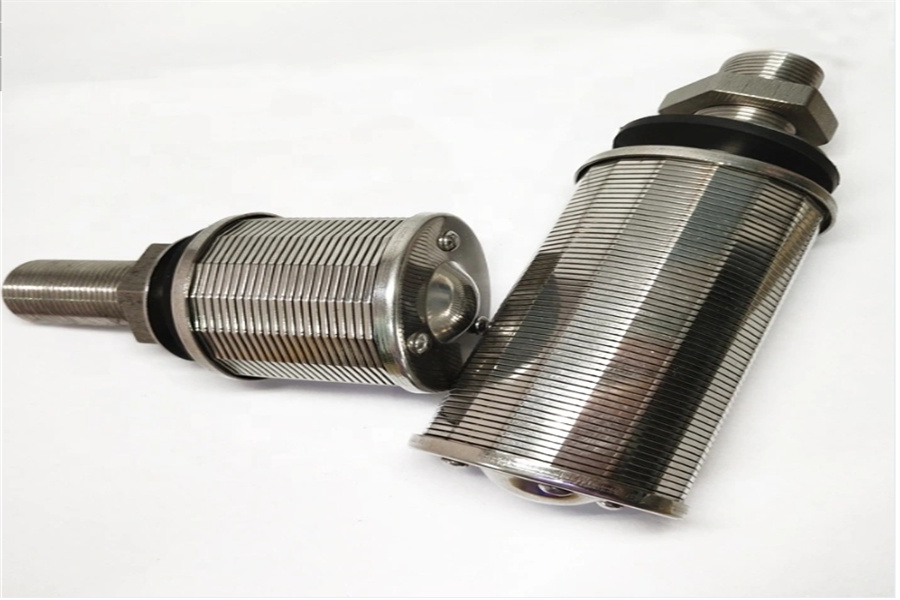

OD 57mm Johnson Continuous Slot Wedge Wire Water Filter Nozzle With M24 Male Threaded
Johnson Continuous Slot Water Filter Nozzle is used for even flow distribution and collection in water treatment systems.
Their high open area and low entrance velocity maximize the efficiency of the filter media which increases productivity and lowers costs
.
Johnson Continuous Slot Wedge Wire Water Filter Nozzle Description:
| Product Name | Johnson Continuous Slot Wedge Wire Water Filter Nozzle | Usage | Liquid filter |
| Material | Stainless Steel | Grade | 304, 321,316L, Hastelloy, in usual |
| Diameter | 57 mm, Also can make other sizes | Slot size | 0.2-0.3mm |
| Screen Length | 35 - 55 mm,or others as your request | Total length | 110mm |
| Threaded Size | M24 OR M32 | Profile wire size | 1.5*2mm, 1.8x2.5mm |
| Nut | 1 OR 2 PCS | Support rod size | 2*3mm |
| Gasket | 1 stainless steel gasket,1 rubber gasket | Type | Wedge Wire Strainer Nozzle, Johnson Screen Nozzle, Filter element |
Johnson Continuous Slot Wedge Wire Water Filter Nozzle Characteristic:
This wedge wire water filter nozzle is welded with
1. screen pipe
2. thread pipe
3. steel plate
4. Threaded end (is divided into female and male), some nipple with nuts and rubber washer.
Johnson Continuous Slot Water Filter Nozzle, usually with high quality stainless steel 304, 316L and other materials to ensure strong product structure and product bearing capacity.
The weight is generally 0.2-0.5kg, the volume weight is small, the appearance is exquisite.
Benefits: Johnson continuous slot wedge wire water filter nozzle
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
Packaging & Delivery: Johnson continous slot wedge wire water filter nozzle
With plastic film or buble package with weave bag, then packed in wooden boxes or container
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
According to your requirment.
Johnson continuous slot wedge wire water screen nozzle Technical Data reference table:
| Model | Slot Opening Size | Dimensions | Flow area with 0.2mm slot opening (mm2) |
| D | L1 | L | M |
| FY-XL-DT-45-A | 0.2-0.5 | 45 | 25 | 90 | 25 | 280 |
| FY-XL-DT-45-B | 0.2-0.5 | 45 | 35 | 100 | 25 | 380 |
| FY-XL-DT-45-C | 0.2-0.5 | 45 | 45 | 110 | 25 | 550 |
| FY-XL-DT-45-D | 0.2-0.5 | 45 | 35 | 55 | 25 | 380 |
| FY-XL-DT-45-E | 0.2-0.5 | 45 | 45 | 65 | 25 | 550 |
| FY-XL-DT-53-A | 0.2-0.5 | 53 | 35 | 100 | 25 | 450 |
| FY-XL-DT-53-B | 0.2-0.5 | 53 | 45 | 110 | 25 | 580 |
| FY-XL-DT-53-C | 0.2-0.5 | 53 | 55 | 120 | 32 | 700 |
| FY-XL-DT-57-A | 0.2-0.5 | 57 | 35 | 100 | 32 | 530 |
| FY-XL-DT-57-B | 0.2-0.5 | 57 | 45 | 110 | 32 | 680 |
| FY-XL-DT-57-C | 0.2-0.5 | 57 | 55 | 120 | 32 | 830 |
| FY-XL-DT-70-A | 0.2-0.5 | 70 | 40 | 105 | 32 | 650 |
| FY-XL-DT-70-B | 0.2-0.5 | 70 | 55 | 115 | 32 | 810 |
If you have any inquires please feel free to contact us !
We can make any sizes according to your drawing.
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q:To quote,what’s information needed?
A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.
Q: How long is your delivery time?
A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.
Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.
Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shipment.
Q:How to confirm the quality about your products?
A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.
Q: How do you make our business long-term and good relationship?
A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.
---------------------------------------------------------------------------------------------------------------
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
